| Engine Model | OM926 BSVI OBD-II |
| Maximum Power – (kW) | 316hp (236kW) @ 2200 rpm |
| Maximum Torque – (Nm) | 1250 Nm @ 1200 – 1600 rpm |
| No. of Cylinders, cc | 6 , 7200 |
| Gear Box Model & Type | TORQSHIFT, 12F + 4R |
| Clutch Type | Single Dry Plate – Organic |
| Clutch Dia, Wear (mm) | 430 |
| Power Take Off | Standard |
| Front Axle | IF10 (Forged – Reverse Elliot) |
| Rear Axle | MT36 (Hub reduction) |
| Rear Axle Ratio | 6.18 |
| Frame Section (D x W x T) (mm) | 288 x 70 x 9 |
| Front Suspension | 4 Leaf Parabolic Leaf Spring |
| Rear Suspension | Tandem, Multi Leaf Bogie |
| Anti-Roll Bar | Front & Rear – Standard |
| Service Brake | Pneumatic – Dual Line with ABS & Hill Hold Assist |
| Front Brake Size (mm) & Type | Ø 410 drum |
| Rear Brake Size (mm) & Type | Ø 410 drum |
| Auxillary Brake | Engine Brake & Exhaust Brake |
| Cabin | Day Cabin |
| Steering Type | Hydraulic Power Assisted (Tilt and Telescopic) |
| Battery Capacity | 120Ah |
| Voltage | 24V |
| Pattern & Size | 12×20 Mine Lug with 8.5×20 Wheel Rim |
| Gross Vehicle Weight – (kg) | 28000 |
| Wheel Base (mm): | 4275 | ||
| Loading Span (ft) / Loadbody cpc (Cu.m): | 16 Scoop | ||
| Overall Length (mm): | 7185 | ||
| Overall Width (mm): | 2490 | ||
| Overall Height (mm) (CBC): | 2995 | ||
| Front Overhang (mm): | 1485 | ||
| Rear Overhang (mm): | 750 | ||
| Ground Clearance (mm): | 349 |
| Filling Capacity (L) | 260 |
| Adblue Tank / Filling Capacity (L) | 36 |
| TCD (m) | 16.2 |
| Maximum Gradeability (%) | 83 |
| Maximum Geared Speed (kmph) | 60 |

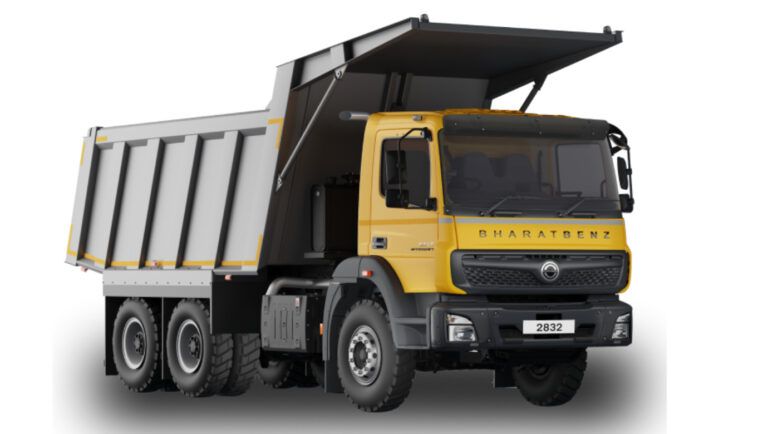

The BharatBenz 2832CM is built for superior fuel efficiency, offering up to 6.5 KMPL, making it one of the most economical trucks in its category. Its advanced BS-VI compliant engine ensures reduced emissions and enhanced mileage without sacrificing power and performance.
The on-road price of the BharatBenz 2832CM varies based on location and other factors. For the best price and offers, contact us today.
