| Model | OM926 |
| Maximum Power, kW | 180 kW @ 2200 rpm |
| Maximum Torque, Nm | 850 Nm @ 1200 -1600 rpm |
| No. of Cylinder, Displacement | 6 cylinder, 7200 CC |
| Emission Compliance | Bharat Stage VI |
| Gearbox Model & Type | G85 OD, 6 Speed Mechanical, Synchromesh Gears |
| Clutch Type | Organic, Single dry plate |
| Clutch Diameter (mm) | 395 mm |
| Front Axle Model, Type | IF6.6 |
| Rear Axle Model, Type | IR440 |
| Rear Axle Ratio | 4.77 |
| Frame Section (H x W x T) (mm) | 255 x 73.5 x 7 |
| Suspension | Air / Parabolic |
| Service Brake | Dual Circuit, full air, S-Cam type drum |
| Parking Brake | Spring Actuated with Hand Brake Valve |
| Auxillary Brake | Engine Brake + Exhaust Brake + Retarder (Optional) |
| Tyre Size | 295 / 80 R22.5 tubeless tyres |
| Steering Type | Power Steering, adjustable and tiltable |
| Battery Capacity | 2 x 12 V,200Ah |
| Voltage | 24 V |
| Wheel Base | 5950 |
| Overall Length | 11765 |
| Overall Width | 2530 |
| Overall Height | 2335 |
| Front Overhang | 2305 |
| Rear Overhang | 3510 |
| Minimum Ground Clearance | 239 |
| Gross Vehicle Weight | 16700 kg |
| Fuel Tank/Filling Capacity | 380 L/ 355 L |
| Adblue Tank/Filling Capacity | 60 L/ 50 L |

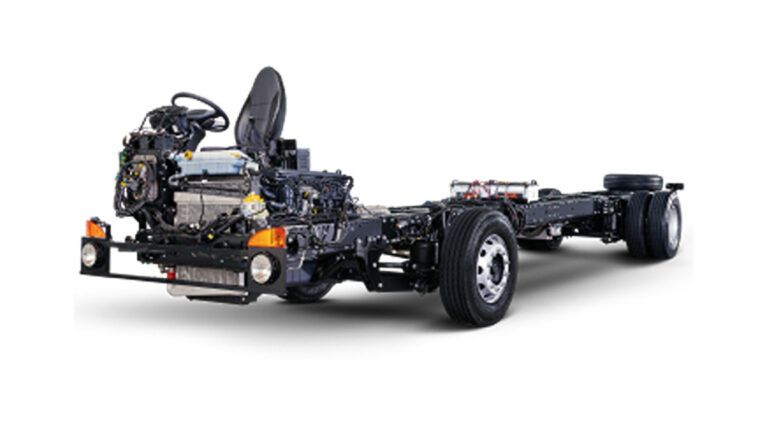

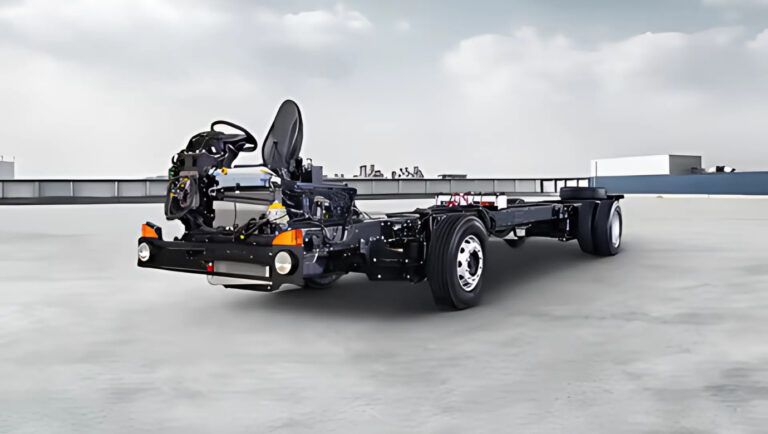

The BharatBenz 1624 bus chassis is designed for reliable performance with a fuel efficiency of 3.5 – 4.5 KMPL, making it a dependable choice for long-distance travel. Equipped with a robust BS-VI compliant diesel engine, it ensures lower emissions while maintaining optimal power and efficiency. Its 380-liter fuel tank capacity provides extended range, minimizing the need for frequent refueling during journeys.
The on-road price of the BharatBenz 1624 Bus Chassis varies based on location and other factors. For the best price and offers, contact us today. 📞 Get in touch with us for pricing and financing details!
Features like seat belts, anti-lock braking systems (ABS), and strategically placed emergency exits make our buses the safest on the road.
German engineering ensures premium interiors with features like air conditioning, ergonomic seating, and anti-skid flooring.
Designed with efficiency in mind, our buses offer up to 10% better fuel economy and reduced maintenance costs.
Built to meet BS-VI standards, our buses contribute to a cleaner and greener future.
